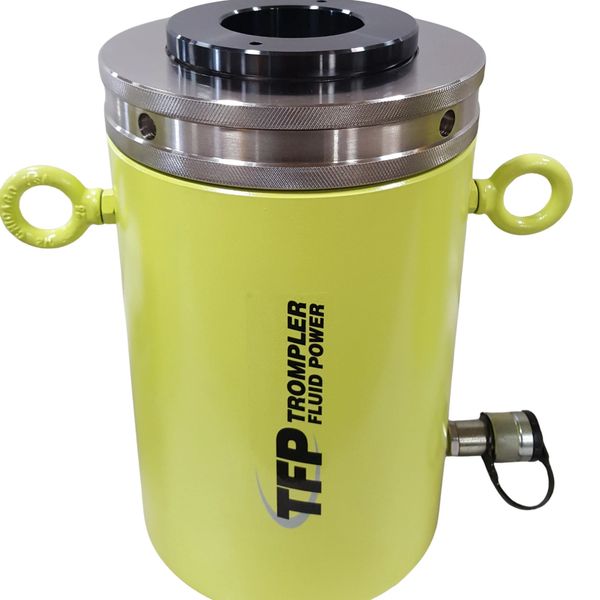

Center-Hole Cylinders



Center hole cylinders are capable of both push and pull forces.  Our line features:

  • Capacity: 30-100 Tons
  • Strokes: 2.5-6.13″
  • Max operating pressure: 10,000 PSI
  • Lifetime warranty against workmanship and material defect
  • High-flow coupler with ball check and dust cap
  • Enhanced design features improve reliability and solve common service issues

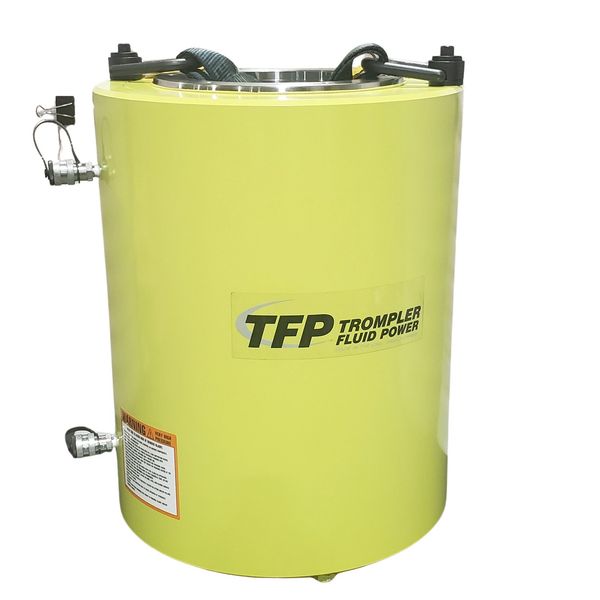

Double-Acting Cylinders

Our Mission

 Features:

  • Capacity: 55-100 Tons
  • 6-13″ stroke
  • Max. operating pressure: 10,000 PSI
  • Lifetime warranty against workmanship and material defect
  • Meets or exceeds ANSI/ASME B30.1 safety standards
  • Heat-treated and coated for strength and reliability
  • High-flow couplers with ball check and dust cap
  • Exclusive solid up-stop design to prevent piston blowout and eliminate deformation at fully-rated load

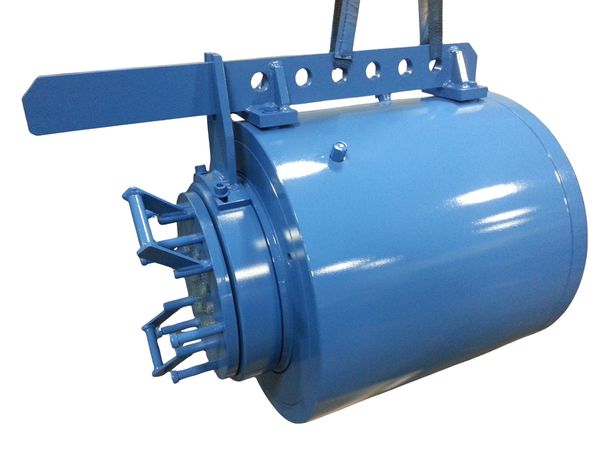

High-Tonnage Cylinders



TFP’s line of High-Tonnage cylinders have a capacity of 150-1,200 tons, and strokes from 2-48 inches.

  • Max. Operating Pressure of 10,000 PSI
  • Exclusive solid up-stop design prevents blowout
  • Designed to operate in harsh environments
  • Variety of applications including mining, under-pinning, post-tensioning, and many more
  • Lifetime warranty against workmanship and material defect

Lock-Nut Cylinders

  Lock-Nut Cylinders manufactured by TFP will be built to the customer’s specifications (custom strokes available.)

Applications:

  • Bridge Lifting
  • Bearing Plates
  • Cribbing
  • Extended Load Holding

Lock-Nut cylinders mechanically extend load holding period with hydraulic pump disconnected.  They eliminate the need for cribbing, reducing installation time and labor costs.

Features:

  • 30-1,200 Ton Capacity
  • 2-12″ Stroke
  • Max. Operating Pressure: 10,000 PSI

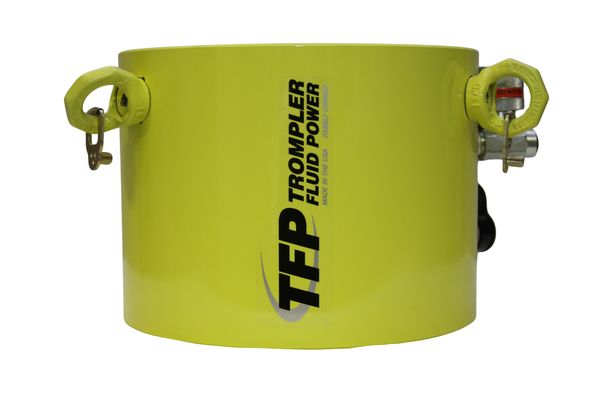

Low Profile & Pancake Cylinders

  To enhance applicational use, TFP offers a full lineup of low profile and pancake cylinders designed to fit into areas other cylinders will not.  These single acting cylinders are manufactured to be used in tough conditions and have heavy-duty steel springs for fast retraction.

Features:

  • Slim Profile provides flexibility in restrictive areas
  • Capacity: 10-100 Ton
  • 7/16″ – 2.12″ strokes available
  • Max. operating pressure 10,000 PSI

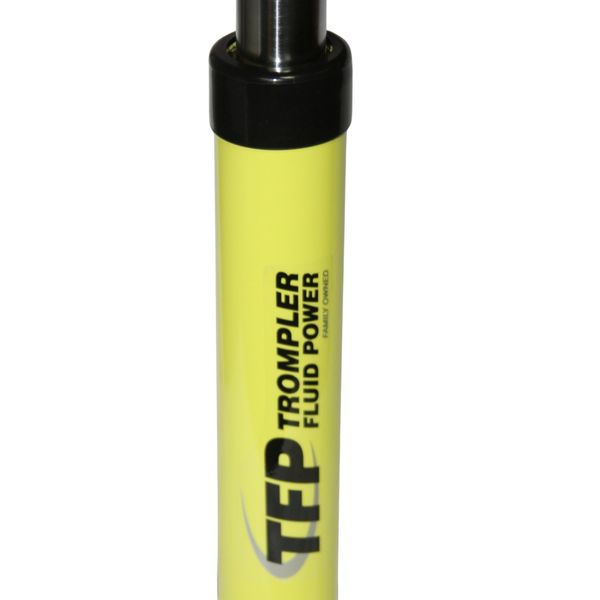

Single Acting Spring Return Cylinders

 Features:

  • 5-100 Ton Capacity
  • 2-13.25″ Stroke
  • Max. Operating Pressure 10,000 PSI
  • Precision-wound steel spring provides fast and complete retraction even in horizontal position
  • High-quality specially designed seals for long product life
  • Collar threads standard from 5-25 ton
  • Base mounting holes compatible with competing industrial cylinders

Anatomy of a TFP Cylinder

Coming Soon
